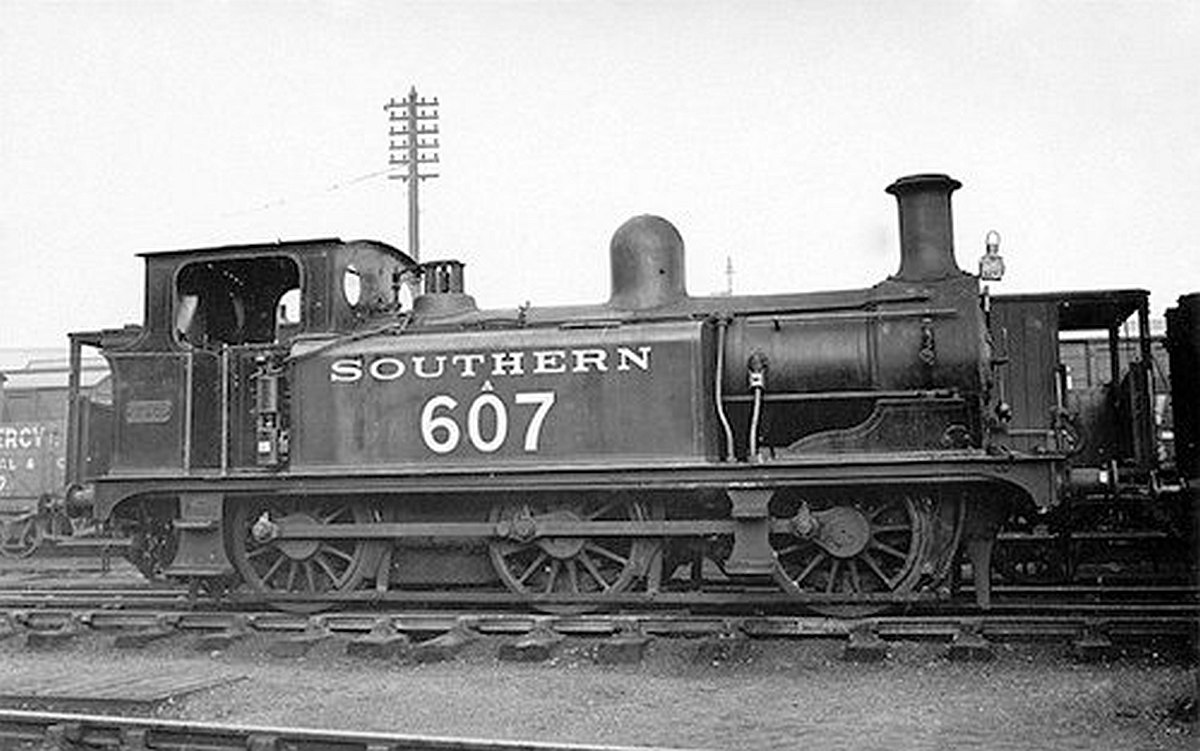

LCDR Kirtley T Class 0-6-0T
photograph: Steve Roffey collection
|
| The London Chatham & Dover Railway T Class 0-6-0T tanks
were introduced by Kirtley for shunting and local goods work between 1879 and
1893. All ten were built at the LC&DR's own works at Longhedge. The last
eight, constructed a decade after the first pair, had six inch longer frames to
provide a larger bunker and space on the cab side sheeting for the Westinghouse
pump (the first two having steam brakes only, in spite of which they were over a
ton heavier). In peacetime they worked at Herne Hill and Victoria sidings where
they were kept in first rate order, also performing a degree of passenger work,
though N°150 spent most of its pre-SECR days on the docks at Dover. The
formation of the South Eastern & Chatham Railway in 1899 saw 459 added to
their numbers in common with the other inherited LC&DR types, and all
received Wainwright's lined Passenger Green livery. During the 1914-1918 war
they were repainted in SE&CR 'austerity' grey and most if not all of
them put in an appearance at the port of Boulogne at one time or another; a
couple could usually be seen there. To avoid confusion with other locomotives
borrowed by the R.O.D., a figure 5 prefix was added to their numbers whilst in
France. Reboilering took place between 1908 and 1926, increasing the working
pressure to 160lb, while 17½in. diameter cylinders were fitted between
1913 and 1924.
Withdrawals began in 1932 with N° A605 being condemned in July of that year. Two (1600, 1608) were sold into industrial service in December 1936 and this was the intended fate of A607; however, the deal fell through and after a period in store at Battersea, this engine was overhauled at Ashford Works in the summer of 1938 and sent to work at Meldon Quarry in place of the diminutive former SER Manning Wardle 0-4-0T N° 225S which was by then beyond economic repair. N°1604 was placed in store during January 1939 as part of a reserve of locomotives to be reinstated in the advent of hostilities and was duly repaired and returned to traffic, being lent to Colonel Stephens' East Kent Railway where it remained until January 1945. N°1604 was then returned to Herne Hill sidings to work with the other surviving T, N°1602. Taken over by British Railways in 1948, by which time only 18 former LC&DR locomotives were left (the remainder being R/R1 0-4-4T Class locos), the surviving pair were sent to Reading where they spent most of their time in store, though N°31602 is recorded as having reached Guildford at least once. This engine was the last survivor in BR ownership, being withdrawn in July 1951. The very last surviving T was however one of the pair sold to Frazer and Co., Hebburn-on-Tyne in December 1936. Resold to R. Evans & Co., St. Helens in March 1940, the former SR N°1600 was employed at Haydock Colliery until the end of 1957, still in SR unlined black livery. |
|
Technical Details
| Introduced: Driving Wheel: Weight (141-142): Weight (143-150): Water Capacity: Cylinders (2): Boiler Pressure: Tractive Effort: Coal Capacity (141-142): Coal Capacity (143-150): |
1879 4 ft 6ins 42 tons 0 cwt 40 tons 15 cwt 830 gals 17 in x 24 in 150 lb sq in 22,150 lbs 15 cwt 1½ tons |
Data
| LCDR N° | SECR N° | SR N° # | BR N° | Works N° # | Withdrawn |
| 141 | 600 | 1600 | 6 (1879) | Dec 1936 | |
| 142 | 601 | 1601 # | 7 (1879) | Jun 1933 | |
| 143 | 602 | 1602 | 31602 # | 22 (1893) | Jul 1951 |
| 144 | 603 | 1603 | 23 (1893) | Jan 1936 | |
| 145 | 604 | 1604 | 31604 # | 17 (1891) | Nov 1950 |
| 146 | 605 | 1605 # | 15 (1890) | Jul 1932 | |
| 147 | 606 | 1606 # | 18 (1891) | Dec 1936 | |
| 148 | 607 | 1607 #/500S # | 16 (1890) | Nov 1949 | |
| 149 | 608 | 1608 | 14 (1889) | Dec 1936 | |
| 150 | 609 | 1609 # | 19 (1891) | Dec 1936 | |
# Between 1923 and 1931 SR numbers were the SECR numbers with the added prefix 'A', although the prefix may not have been removed until some time later. # The spasmodic numbering of N°s 145-150 was due to the order in which the scrapping of the Martley era "Ruby" class 2-4-0Ts they replaced, and acquired their numbers from, took place. # To service stock and sent to Meldon Quarry September 1938. # Number not carried? |
|||||
