SR Maunsell Z class 0-8-0T

photograph: Mike Morant collection

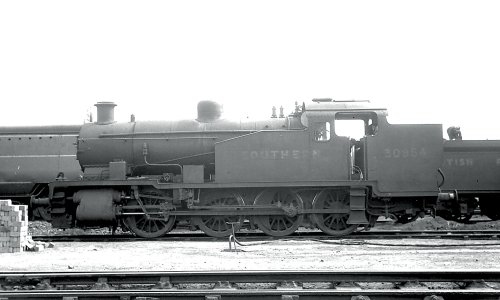

N°30954 photographed in very early British Railways days at Exmouth Junction on 28th July 1949. She still has SOUTHERN on her tanks but has her BR number in Sunshine style numerals on her bunker.

The Z class was the only Maunsell eight-coupled design to materialise, although there were plans for others. It was designed and produced for the specialist role of heavy shunting in hump and marshalling yards. In doing so a considerable number of standard parts and an existing Brighton boiler design were utilised, this class also incorporating the experience of the Urie G16 class 4-8-0T which had been produced for the same purpose. The specialist requirements were for a locomotive which was capable of delivering a lot of power after lengthy periods of idling, to do so without excessive blowing off and slipping, being quiet in operation and to be able to negotiate tight curves.

To achieve the required specification a large water and steam capacity was required, the boiler selected was of the parallel non-superheated type with a moderate grate area of 18.6 sq ft and total evaporative heating surface of up to 1279 sq ft. The boiler pressure was 180 lb per sq in resulting in a tractive effort at 85 percent pressure of 29,380 lb. The water tanks could hold 1500 gallons and the coal bunker 3 tons. Three 16in diameter 28in stroke cylinders (interchangeable with those on N1 and U1 classes) were used, the outside pair driving the third axle through 11ft 6in connecting rods and the inside cylinder set at 1 in 8 driving the second axle. Walschaerts valve gear controlled the outside pistons, the inside one having custom designed gear. The wheels were of 4ft 8in diameter and the leading and trailing pair had sufficient sideplay so that curves of 4½ chains could be negotiated despite the 17ft 6 in wheelbase. The only adverse feature was the overhang of 11ft at each end which meant that the class could only be used where sharp curves were not in tight surroundings. Steam brakes were fitted as was vacuum apparatus and a steam reverser. Steam heating for passenger stock and banana vans was also provided. The overall result was a responsive, powerful engine practically immune to slipping with a very quiet beat.

Eight locomotives numbered 950-957 (30950-7 under BR) were built at Brighton works in 1929. Such was the success of the class that a further ten were planned for Eastleigh works in 1931 but were cancelled because of the economic climate. Instead with much farsightedness ultimately three diesel electric shunters were ordered. This class quietly and without ceremony went about its designed tasks successfully for its entire life, although they were not as successful at trip workings as the G16s. Three, 951/5/6, were loaned to the war department during World War Two and served in Scotland. Throughout their lives they were allocated to Ashford, Brighton, Dover, Eastleigh, Exmouth Junction, Gillingham, Hither Green, Salisbury, Templecombe, Three Bridges and Tonbridge. Towards the end of their lives they took their turn on banking duties up the 1 in 37 hill from Exeter St Davids to Exeter Central. Their appearance was largely unchanged throughout and the entire class was withdrawn throughout 1962. Regrettably none is preserved.

Click on the thumbnails for a larger image. Clicking again will close the window.
If there is a larger version, clicking on the 'F' key will display it.
  • 30955
    Exeter Central
    N°30955 at Exeter Central, date unknown. A wealth of detail is in this photograph with the three men all appearing to be looking in the same direction! You won't see a porter with a trolley on a crossing at EC today!.
    Photograph by the late Trefor David, courtesy of Mike Morant.
  • 30957
    Exmouth Jn

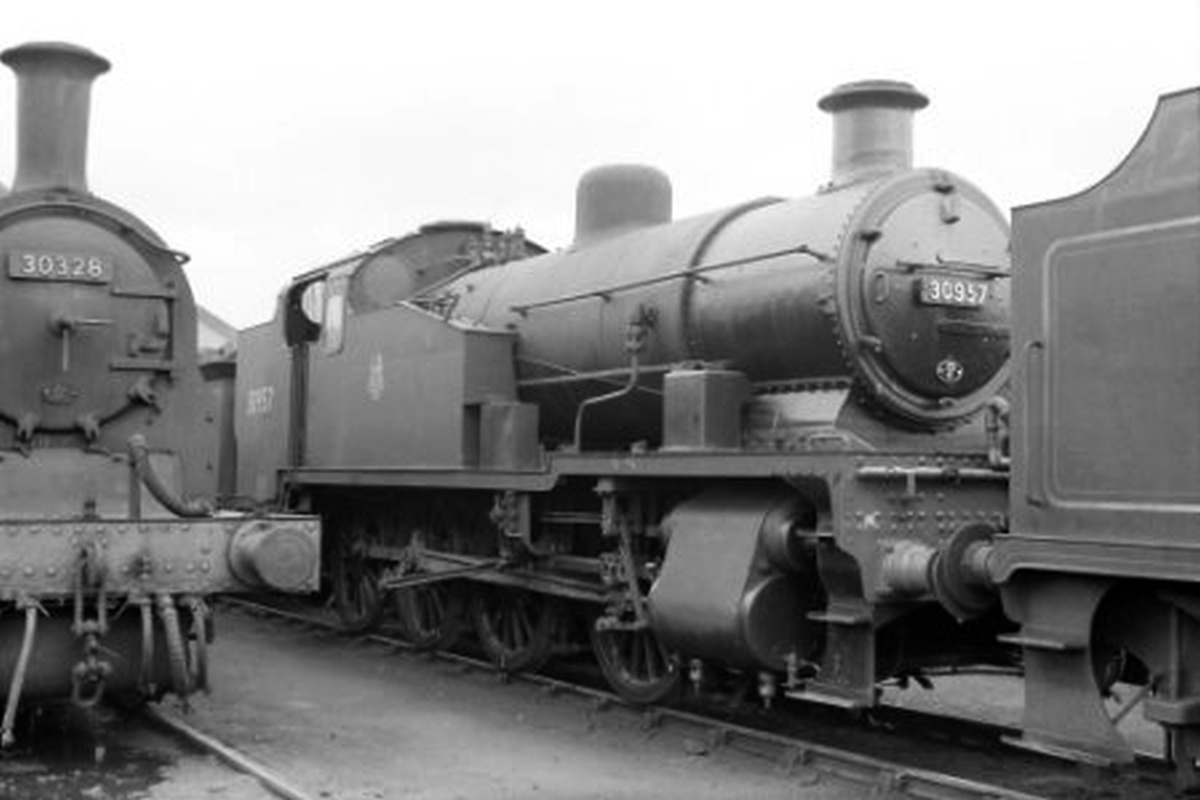

    N°30957 on shed at Exmouth Junction. Again the date is unknown though she is wearing the early style of BR crest.
    Photograph: Mike Morant collection.
  • 30950
    Redhill

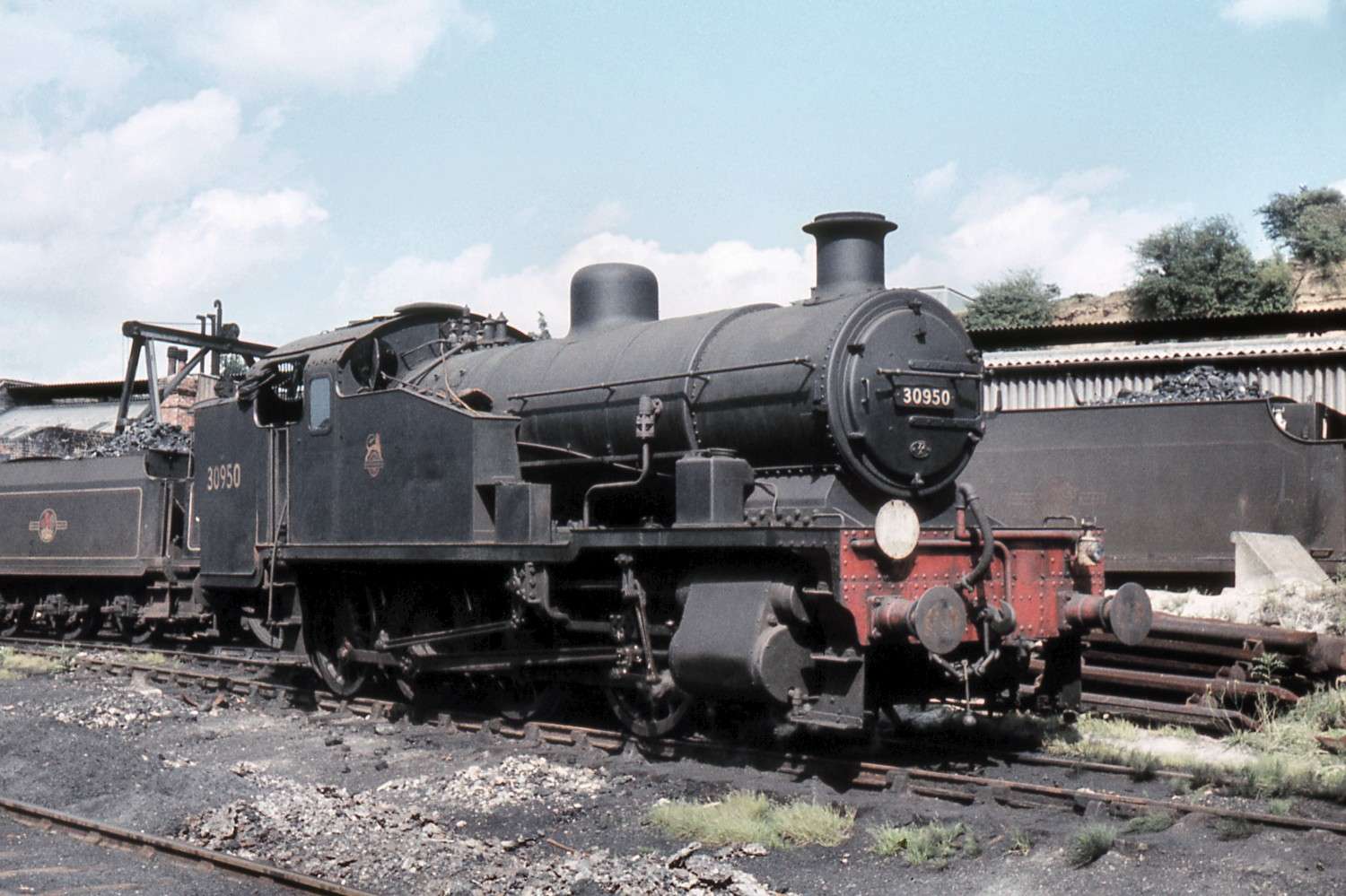

    N°30950 at Redhill MPD 17th July 1960.
    Photograph: Gerald T. Robinson/Mike Morant collection.
  • 30955
    Exeter St Davids

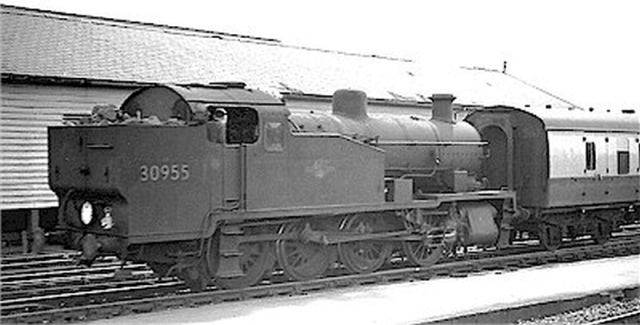

    N°30955 banking the rear of a train at Exeter St Davids on 5th August 1961.
    Photograph by Alan Robinson.
  • 30951
    Exeter Central
    N°30951 is simmering away at Exeter Central on 5th August 1961.
    Photograph by Alan Robinson.
  • 30956
    Exeter St Davids

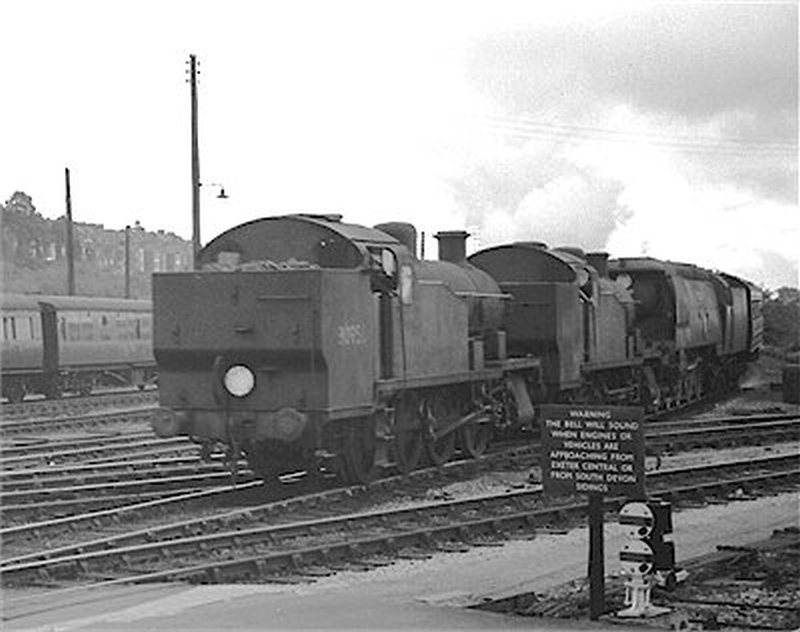

    N°30956 and another Z Class are backing down at the head of a train from Exeter Central into Exeter St Davids station, the pair here at the foot of the 1 in 37 incline. Banking locomotives were often attached to services down the incline to cut down on the number of light engine movements.
    Photograph by Alan Robinson.

Technical Details

Introduced:
Driving Wheel:
Length:
Total Weight:
Water Capacity:
Cylinders (3):
Boiler Pressure:
Tractive Effort:
Coal Capacity:
Power Classification:
Mar 1929
4 ft 8 ins
39 ft 4 in
71 tons 12 cwt
1,500 gals
16 in x 18 in
180 lb sq in
29,376 lb
3 ton 0 cwt
6-F

Data


SR N° BR N° Built Withdrawn
950 30950 Apr 1929 Nov 1962
951 30951 May 1929 Nov 1962
952 30952 May 1929 Nov 1962
953 30953 Jun 1929 Dec 1962
954 30954 Sep 1929 Dec 1962
955 30955 Jul 1929 Dec 1962
956 30956 Mar 1929 Dec 1962
957 30957 Aug 1929 Nov 1962
