Drummond L11 class 4-4-0

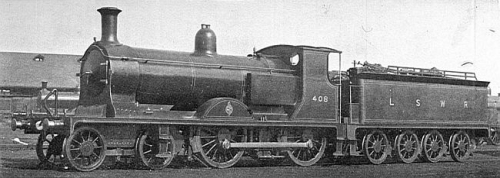

Scan from Howden, J.R. (1907) The Boys' Book of Locomotives.
|
| Following his K10 class of
1897, Dugald Drummond produced another 4-4-0 using the same firebox though with a coupled
wheelbase 1' longer at 10' 0", the L11 class, in 1903. Whilst the K10s were known
as "Small Hoppers", the L11s were the "Large Hoppers". The class
was designed due to the need for tender engines to work slow passenger, van, or
pick-up goods traffic. The L11s had the excellent, free-steaming, boiler from
his most successful of all passenger locomotives, the T9 class of 1899. Despite the smaller wheels fitted
(5' 7" against the T9's 6' 7") these excellent mixed
traffic locos could more than hold their own when called upon to help out the
Greyhounds with summer Saturday holiday traffic. 29 of the 40 members of the
class were coupled to Drummond's 6 wheel outside framed tender whilst the
other eleven had 4,000 gallon bogie tenders. As time progressed more and more
of the class were given the bogie tender (through interchange with T9s) until
all bar two, numbers 440 and 441, were so fitted. These two were the only two
of the class to have Westinghouse brake control (until some time between 1931
and 1936) as well as the vacuum brake, the remainder of the class having vacuum
only.
Their one drawback was the marine type big ends, as fitted to the T9s, which for some reason were a big problem on the L11s, resulting in them not being worked quite as hard as the T9s were. Unlike the T9s, and many of Drummond's other classes, the L11s were not subsequently superheated and, although they remained on their "home territory" after the formation of the Southern Railway, some were sent to Ashford for repair. The whole class lasted into British Railways' days, but only just! Withdrawals started in February 1949 and by October 1952 the whole class had gone. |
|
Technical Details
| Introduced: Bogie Wheel: Driving Wheel: Length: Total Weight: Cylinders (2): Boiler Pressure: Tractive Effort: Water Capacity: Coal Capacity: |
1903 3 ft 7 ins 5 ft 7 ins 46 ft 10 ins 50 tons 11 cwt 18½ x 26 in 175 lb sq in 16,750 lb 3,500/4000 galls 4 ton 0 cwt |
Data
| The L&SWR was better than the other Southern Companies in keeping locomotive classes more or less in consecutive numbers, though not perfect! The following table is set out in order of build: | ||||
| LSWR N° | SR N° # | BR N° | Built | Withdrawn |
| 154 | 154 | 30154 | May 1903 | Apr 1951 |
| 155 | 155 | 30155 | May 1903 | Mar 1951 |
| 156 | 156 | 30156 | Jun 1903 | Mar 1951 |
| 157 | 157 | 30157 | Jun 1903 | Mar 1952 |
| 158 | 158 | 30158 | Jun 1903 | Dec 1950 |
| 159 | 159 | 30159 | Sep 1903 | Mar 1951 |
| 161 | 161 | 30161 | Sep 1903 | Jul 1950 |
| 163 | 163 | 30163 | Sep 1903 | Oct 1951 |
| 164 | 164 | 30164 | Oct 1903 | Oct 1951 |
| 165 | 165 | 30165 | Oct 1903 | Apr 1951 |
| 134 | 134 | 30134 | Apr 1904 | Mar 1951 |
| 148 | 148 | 30148 | Apr 1904 | Mar 1952 |
| 166 | 166 | 30166 | Apr 1904 | Aug 1950 |
| 167 | 167 | 30167 | May 1904 | Dec 1949 |
| 168 | 168 | 30168 | May 1904 | Mar 1950 |
| 169 | 169 | 30169 | Aug 1904 | Sep 1949 |
| 170 | 170 | 30170 | Aug 1904 | Mar 1952 |
| 171 | 171 | 30171 | Sep 1904 | Aug 1951 |
| 172 | 172 | 30172 | Sep 1904 | Oct 1952 |
| 173 | 173 | 30173 | Sep 1904 | May 1951 |
| 174 | 174 | 30174 | May 1906 | Aug 1951 |
| 175 | 175 | 30175 | May 1906 | Nov 1951 |
| 407 | 407 | 30407 | May 1906 | Nov 1950 |
| 408 | 408 | 30408 | May 1906 | Apr 1951 |
| 409 | 409 | 30409 | May 1906 | Jun 1951 |
| 410 | 410 | 30410 | Jun 1906 | Feb 1949 |
| 411 | 411 | 30411 | Jun 1906 | Apr 1952 |
| 412 | 412 | 30412 | Jul 1906 | Dec 1950 |
| 413 | 413 | 30413 | Jul 1906 | Mar 1951 |
| 414 | 414 | 30414 | Jul 1906 | May 1951 |
| 405 | 405 | 30405 | Sep 1906 | Mar 1951 |
| 406 | 406 | 30406 | Sep 1906 | Jun 1951 |
| 435 | 435 | 30435 | Oct 1906 | Dec 1949 |
| 436 | 436 | 30436 | Nov 1906 | Aug 1951 |
| 437 | 437 | 30437 | Dec 1906 | Apr 1952 |
| 438 | 438 | 30438 | Mar 1907 | Oct 1951 |
| 439 | 439 | 30439 | Mar 1907 | Sep 1949 |
| 440 § | 440 | 30440 | Apr 1907 | Aug 1949 |
| 441 § | 441 | 30441 | May 1907 | May 1951 |
| 442 | 442 | 30442 | May 1907 | Nov 1951 |
| # Between 1923 and 1928 SR numbers were the L&SWR numbers with the added prefix 'E', although the prefix may not have been removed until some time later! | ||||
| § Fitted with Westinghouse braking as well as vacuum. Removed sometime between 1931 and 1936. | ||||
