SECR Maunsell D1 Class

photograph: Mike Morant collection

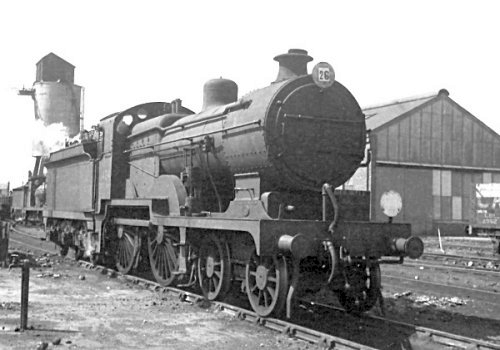

D1 Class N°1494 in barely discernible Southern Railway livery at what appears to be Ashford shed.
Maunsell was confronted with what had become his perennial problems: increased train capacity combined with the need for a light axle loading. He had already achieved those ends with his brilliant E1 class rebuilds of Wainwright's E class and he wisely followed a similar path to success by applying the same principles to some of his predecessor's D class 4-4-0s. These D1 locomotives were, to all intents and purposes, the same as the E1 class.

Ashford was blessed with a great design team but didn't have the works capacity to facilitate the rebuilding in situ and so the drawings and ten locomotives were dispatched to the works of Beyer Peacock during the course of 1921. The resultant rebuilds proved to be just as effective and economical as the E1 class and provided sterling service on the railways of southern England for the next forty years.

Two more of the D class were rebuilt during the following year but the work was undertaken in-house at Ashford. It says a great deal about their success that a further nine examples, also rebuilt at Ashford, followed in their forebears' footsteps some five years later in 1927. The table below lists the relevant rebuilding dates for all members of the class.
Click on the thumbnails for a larger image. Clicking again will close the window.
If there is a larger version, clicking on the 'F' key will display it.
  • 1509
    Faversham

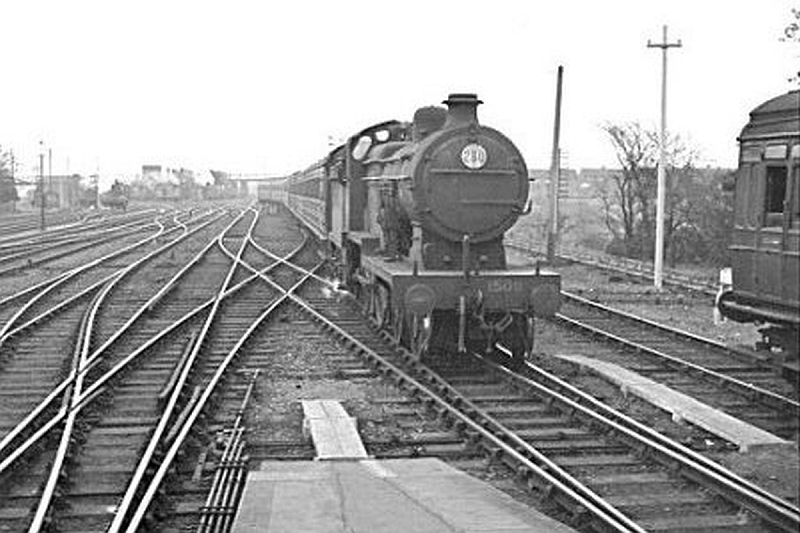

    In this mid-30s shot, N°1509 enters Faversham station. The picture oozes period atmosphere with all the visible rolling stock from the pre-grouping era and a pall of smoke over the engine shed.
    Photograph: Mike Morant collection.
  • 31545
    Victoria

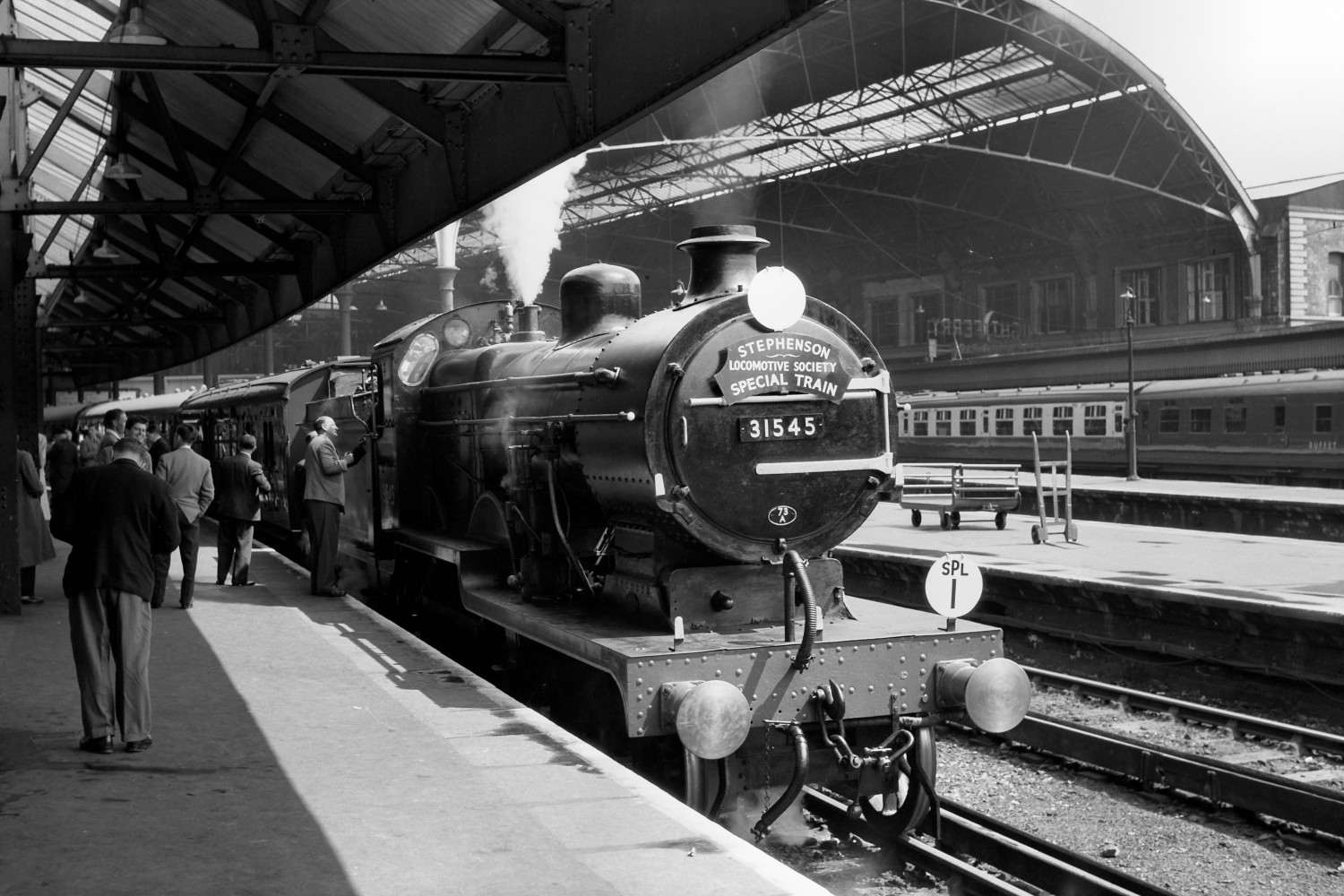

    On 19th May 1957 N°31545 worked the SLS London, Chatham & Dover Rail Tour, here seen with a good head of steam ready to leave Victoria.
    Photograph: Mike Morant collection.
  • 31545
    Nr Bickley

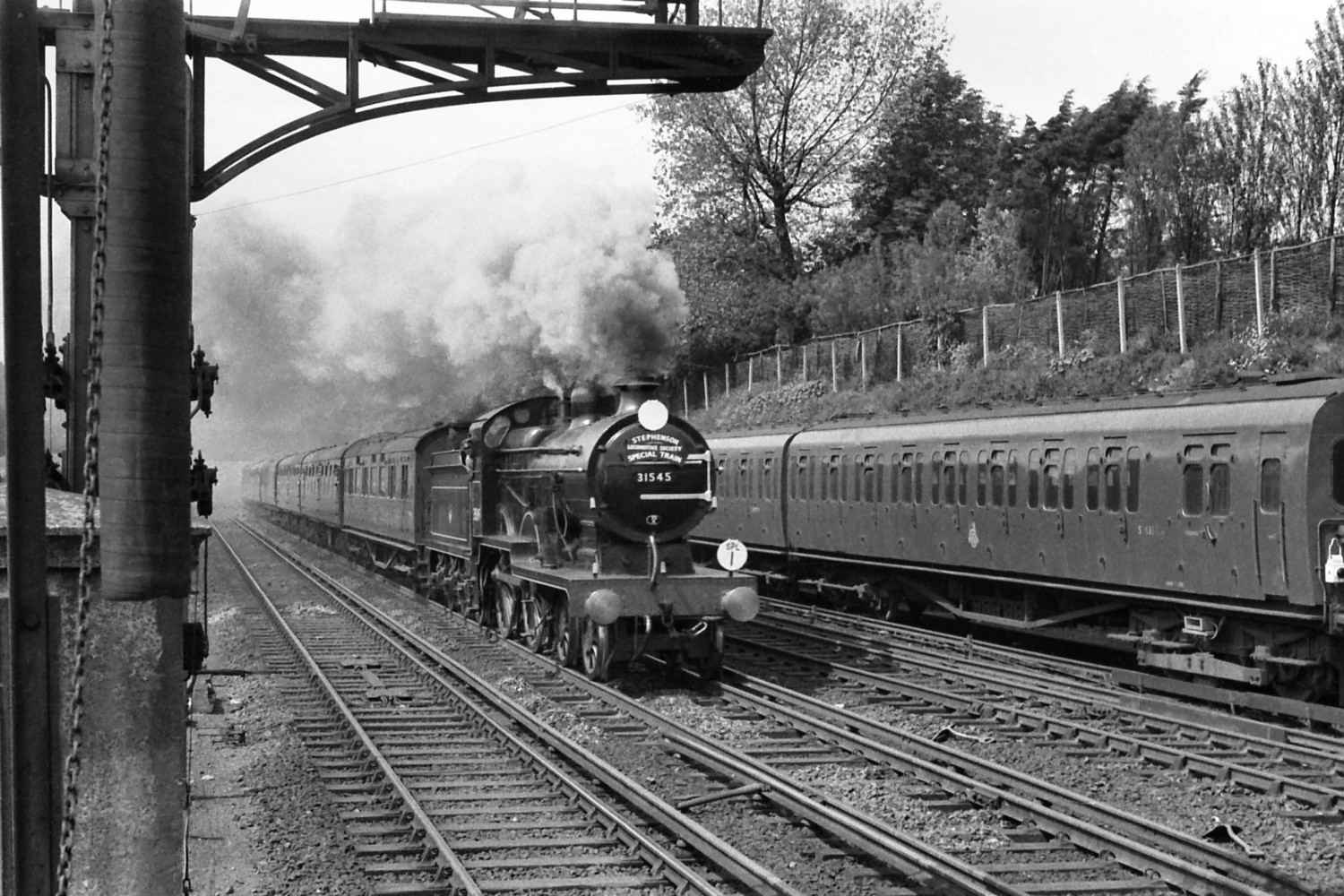

    A short while later N°31545 was photographed on the down line near Bickley.
    Photograph: Mike Morant collection.
  • 31545
    Shortlands

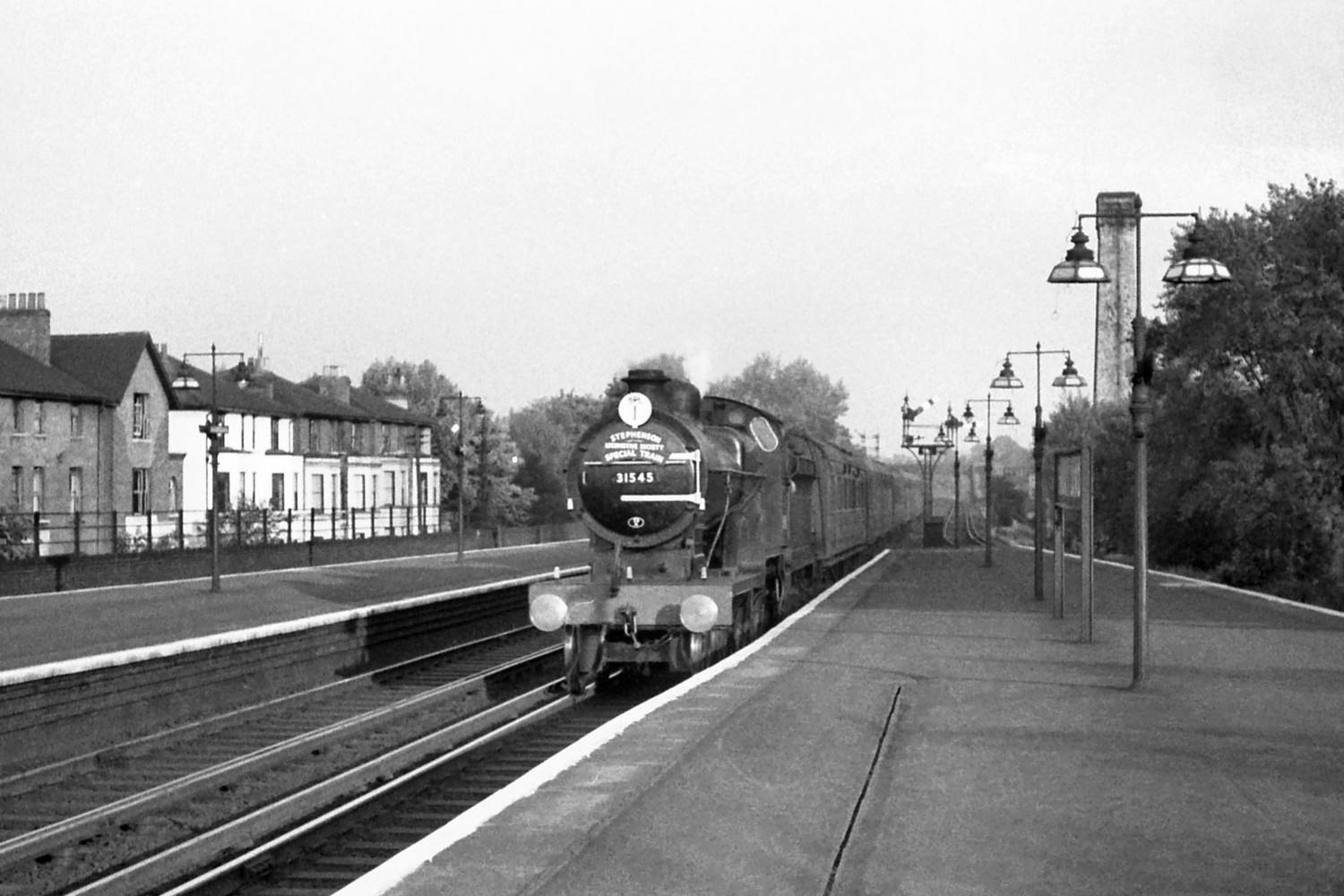

    The same train, now travelling on the up line through Shortlands station.
    Photograph: Mike Morant collection.
  • 31735
    Tonbridge?

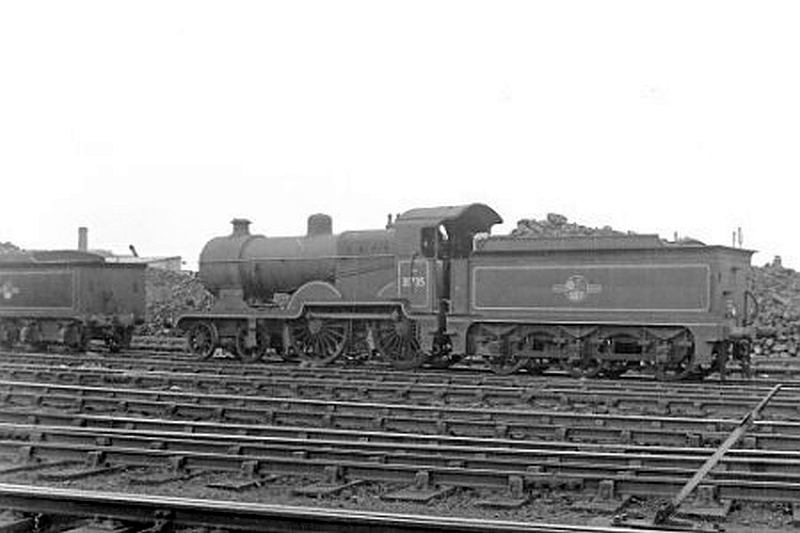

    N°31735 photographed on a bright and sunny day though the date and location are not known, though it may have been at Tonbridge.
    Photograph: Mike Morant collection.
  • 31735
    Eastleigh
    N°31735 is depicted here on shed at Eastleigh on 30th July 1960 and almost at the end of her active life.
    Photograph: Mike Morant collection.

Technical Details

Introduced:
Driving Wheel:
Bogie Wheel:
Length:
Total Weight:
Water Capacity:
Cylinders (2):
Boiler Pressure:
Tractive Effort:
Coal Capacity:
Power Classification:		 1921
6 ft 8 ins
3 ft 7 ins
54 ft 117/8 ins ????
91 tons 4 cwt
3,300 gals
19 in x 26 in
180 lb sq in
17,950 lb
4 ton 10 cwt
3-P

Data

SECR N° SR N° # BR N° Rebuilt from Class D Rebuilt by Withdrawn
145 1145 31145 1922 Ashford Oct 1961
246 1246 31246 1921 Beyer, Peacock & Co. Mar 1961
247 1247 31247 1921 Beyer, Peacock & Co. Jul 1961
470 1470 31470 1926 Ashford Jun 1959
487 1487 31487 1921 Beyer, Peacock & Co. Feb 1961
489 1489 31489 1921 Beyer, Peacock & Co. Nov 1961
492 1492 31492 1927 Ashford Jan 1960
494 1494 31494 1921 Beyer, Peacock & Co. Aug 1960
502 1502 31502 1921 Beyer, Peacock & Co. Feb 1951
505 1505 31505 1927 Ashford Sep 1961
509 1509 31509 1927 Ashford May 1960
545 1545 31545 1921 Beyer, Peacock & Co. Mar 1961
727 1727 31727 1922 Ashford Mar 1961
735 1735 31735 1921 Beyer, Peacock & Co. Apr 1961
736 1736 31736 1927 Ashford Dec 1950
739 1739 31739 1927 Ashford Nov 1961
741 1741 31741 1927 Ashford Sep 1959
743 1743 31743 1927 Ashford Feb 1960
745 1745 31745 1927 Ashford Feb 1951
747 1747 - 1921 Beyer, Peacock & Co. Oct 1944
749 1749 31749 1921 Beyer, Peacock & Co. Nov 1961
