Southern Signals
Colour Light Signals
Some single post signals. |
 |

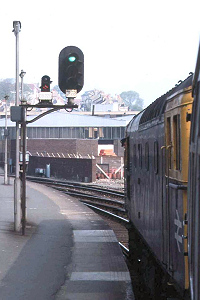

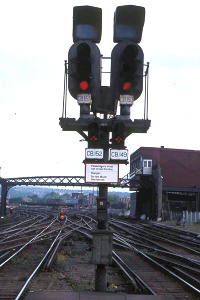

Left:A pair of three aspect starting signals with theatre route indicators above. photographs by Mark Westcott Right: A bracketed starting signal with a subsidiary signal alongside, photographed from the 8:20 a.m. to Cardiff. |
 |
 |
Left:The three aspect Up London starter at Lewes. Note that here the
colour light head has been mounted on the former semaphore post!
photograph by Glen Woods The same signal at Three Bridges as was seen on the introductory page. In this view it can be seen quite clearly that the turnout is set for the Crawley and Horsham line. The signal displays a red aspect but if it were to be cleared to a proceed aspect, then the Junction Indicator's lights would also be illuminated. photograph by Nick Beck |
 |
 |
A signal to the north of Horley station displaying a single yellow aspect
indicating that the next signal is at red. The line it applies to, of course,
is the second from the right, the down slow, whilst the train in the picture is
on the up fast line.
photograph by Nick Beck |
 |
Left:A three aspect signal at Boxhill. The green aspect indicates
that the next signal is showing either yellow or green.
photographs by Nick Beck Right: Two more four aspect signals at Horley. That on the left would advise a driver about to pass it to proceed with caution as the following signal is showing red. The one on the right indicates the next signal is double yellow or green. |
 |
