4-Cep/3-Cep (Class 411)/4-Bep (Class 412)

photograph by Ian Gunn

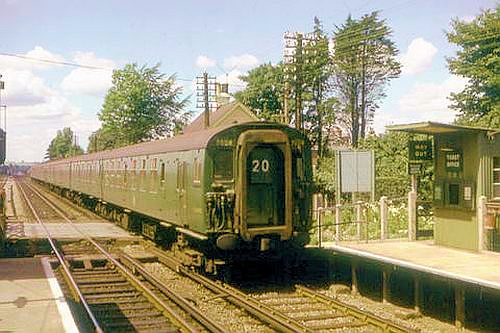

4-Bep unit N°7009 seen running into Warblington Halt during summer 1965.

By the mid 1950s with the existing main line EMU stock originating from the 1930s and with the impending Kent Coast electrification the time had come for a new main line EMU design. In 1956 six prototype units to BR Mk1 design were introduced on the Central Division. Four of them were formed: motor brake second saloon (MBSO), trailer composite corridor (TCK), trailer second corridor (TSK) and motor brake second saloon. These were designated 4-Cep for "Corridor EPB". The remaining two were designated 4-Bep - "Buffet EPB" - having a trailer buffet car replacing the TSK. The Ceps were similar to the contemporary locomotive hauled stock and the cab ends were basically Mk1 coach ends with added cab windows, headcode box and control connections. The shade of green was the darker one which was used from 1957, but it was still glossy, hand-brushed varnish, not the sprayed egg-shell finish which was used from March 1965. The inner ends of the coaches were painted black.

Further batches were built between 1958 and 1963, the majority being for the Kent Coast electrification project but seven units were built for the South Western Division. These latter units were rapidly deployed to the South Eastern Division and some others were assigned to the Central Division. The riding quality of early units with Mk3 or Mk4 trailer bogies proved to be poor and latter batches were built with their non powered bogies being of the Commonwealth type

From 1979 onwards, following an experimental prototype in 1975, the class underwent a mid-life refurbishment which involved a major rebuild. The guards/luggage compartment in each driving motor was replaced by second class saloon and the TSK converted to a second saloon.  The TCK was converted to a trailer brake composite (TBC) with a new guards compartment taking the position of two (out of three) previously second class compartments. Another obvious external difference on the production conversions was the substitution of hopper ventilators for the sliding type of the original Mk1 design. The opportunity was also taken to substitute Commonwealth bogies from withdrawn locomotive hauled coaches for the poor riding Mk3 and Mk4 trailer bogies on the earlier batches.

Introduction of new Networker class 465/466 and 365 EMUs on the Kent Coast lines resulted in surplus Cep units being placed into store, though following privatisation there has been a significant redeployment and reformation of Ceps and Beps. In 1997 South West Trains acquired 16 Ceps from store and also exchanged some Veps for Ceps with Connex SouthCentral in 1998. Withdrawn Cep trailers have found other uses, for instance in class 207 DEMU formations and Cep TSOs have also been used to convert SWT Bigs to Cigs by substituting them for the buffet car, largely as a result of the Big buffets having some traces of asbestos in their roof and a kitchen area that did not meet current food hygiene standards. This was not a problem affecting the Bep buffet cars as they had been upgraded and kitted out with stainless steel kitchens during their 1980s refurbishment. Connex, on the other hand, reduced the 4 car formation to 3-Cep on some units, a change that was accelerated in 1999 in order to improve the performance of the remaining Ceps so that they could keep pace when being diagrammed to work to a class 375 Electrostar schedule - a task they proved to be very capable of despite their age. There was no move by SWT to convert their Beps to Ceps, the Beps remained satisfactorily in traffic until replaced by the class 444 units. They did, in fact, have their buffet cars re-fitted with new microwaves and water heaters and were re-upholstered with the latest red SWT seating covering to the bar and lounge areas.

On Sunday, 27th April 2003, Hertfordshire Railtours ran their "The Cep Salute" railtour using a pair of 4-Cep units and covering virtually all the Kent routes where these saw service. The tour started from Victoria and then travelled by way of Nunhead, Lewisham, Parks Bridge Junction, Chislehurst, Swanley, Borough Green Down Loop, Maidstone East, Ashford International, Canterbury West, Minster and Deal to Dover Priory with photo stops at Asford and Canterbury West. Following a further photo stop at Dover the units reversed and proceeded via Deal, Ramsgate, Faversham and Sittingbourne to Sheerness-on-Sea for another photo stop and reversal and then continued via Western Junction, Gillingham (another reversal), Faversham, Canterbury East, Dover Priory again, with another photo stop, Folkestone Central, Sevington Loop, Ashford and Headcorn Up Goods Loop to Tonbridge. Reversing once more at Tonbridge the tour then went via Tunbridge Wells Central, Battle and Hastings to Ore for a final photo stop and reverse, then via Hastings, Battle, Tunbridge Wells Central, Tonbridge, Sevenoaks, Bat & Ball, Swanley, Shortlands Junction, Catford and Nunhead to London Victoria.

Click on the thumbnails for a larger image.
  • 7118
    Tonbridge
    4-Cep N°7118, possibly at Tonbridge in 1958.
    Photograph: Mike Morant collection.
  • 4-Cep being
    Towed
    An unusual photograph showing a 4-Cep being towed through Wimbledon station during autumn 1962. The loco is not identifiable but may be a Lord Nelson class, whilst there is a brake van attached at rear. It is likely the Cep has been to Eastleigh for repair and is now being returned to Stewarts Lane. Steam haulage, unfitted, with a brake van,  was the norm for everything to and from Eastleigh until 1967.
    Photograph by Chris Knowles-Thomas.
  • 4-Ceps
    Sutton
    In their original condition a Pair of 4-Ceps are seen on a down service at Sutton in 1971. Due to engineering diversions the Victoria - Bognor/Portsmouth trains were being routed via West Croydon instead of Mitcham junction. .
    Photograph by Mike Morant.
  • 4-Ceps
    West Croydon
    Another pair of 4-Ceps routed via West Croydon in 1971, this time with an up service.
    Photograph: Mike Morant collection.
  • Early LSE
    Livery
    After being refurbished, 4-Cep unit N°1529 was seen in early London & South East passenger sector livery (nicknamed "Jaffacake") at Cannon Street on 23rd August 1986.
    Photograph by Colin Duff.
  • Later LSE
    Livery

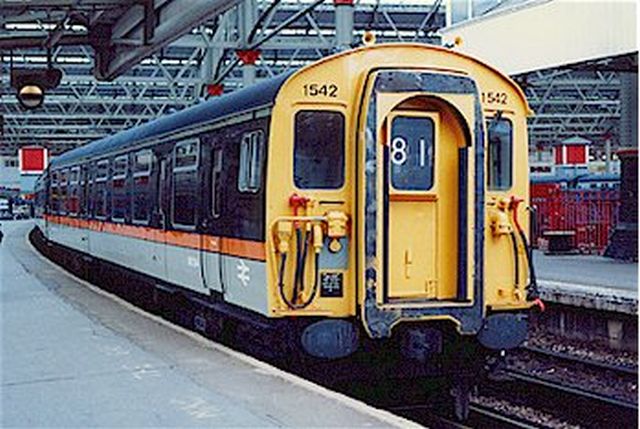

    A 4-Cep in the later form of LSE livery - note the black stripes above and below the orange band - seen at Waterloo on 22nd November 1986 during the Network SouthEast Network Day.
    Photograph by Colin Duff.
  • 1529
    Hastings

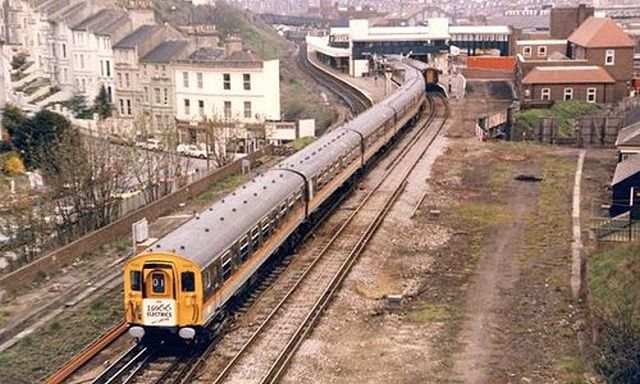

    An immaculate Jaffacake Cep N°1529 is the leading unit on the first day of the Hastings electric services. Behind it in the platform can be seen the Royal Train that brought the Queen Mother to Hastings for the occasion.
    Photograph by Ian Fossey.
  • 1600
    Hastings
    Unit N°1600 at Hastings in the "1066 Electrics" variant of "Jaffacake".
    Photograph by John Lewis.
  • 1636
    Hastings
    Unit N°1636 at Hastings in "Jaffacake" livery without lines or 1066 branding on the same date as the previous two photographs.
    Photograph by John Lewis.
  • 1600
    West St Leonards
    A vanished scene on the Hastings line, at West St Leonards, where refurbished 4-Cep N°1600 stands in the down platfrom during engineering works one weekend. N°1600 is wearing the 'Jaffacake' LSE sector livery, which survived on this line longer than elsewhere, together with the '1066 Electrics' branding. Eventually the Hastings line's dedicated pool of 411s was integrated with the rest of the South Eastern fleet and the route lost much of its special identity.
    Photograph by Mark Westcott.
  • 081
    Clapham Jn
    The remains of N°1500 (which kept the original style Cep windows) as tractor unit 081 at Clapham Junction 22nd September 1994. "Jaffacake" livery with black lines.
    Photograph by John Lewis.
  • 1568
    Clapham Jn
    Unit N°1568 at Clapham Junction on 30th October 1996, wearing a temporary livery whilst on loan to South West Trains.
    Photograph by John Lewis.
  • 693424
    Waterloo

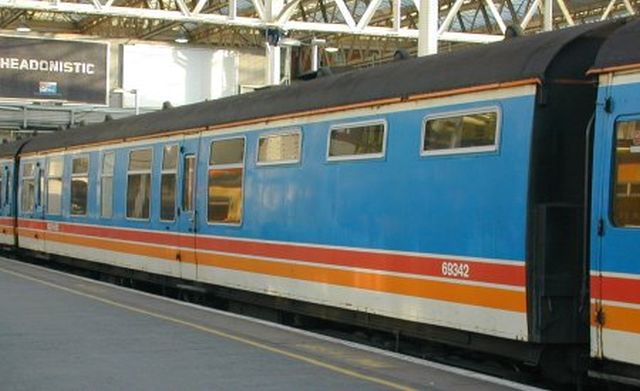

    Buffet car N°693424 in 4-Bep unit N°2322 photographed standing in Waterloo station. The train, consisting of N°2322 and 4-Cep N°2314 (formelly a Bep), is about to leave ECS for Clapham Junction.
    Photograph by James Stearn.
  • 2322
    Clapham Jn

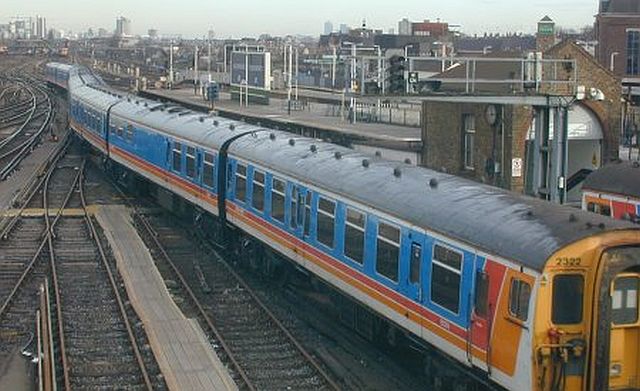

    4-Bep unit N°2322, together with 4-Cep N°2314, have just been through the train wash at Clapham, a sign of SWT's dedication to its fleet as the Beps was due for withdrawal just weeks later.
    Photograph by James Stearn.
  • 1103
    Ramsgate

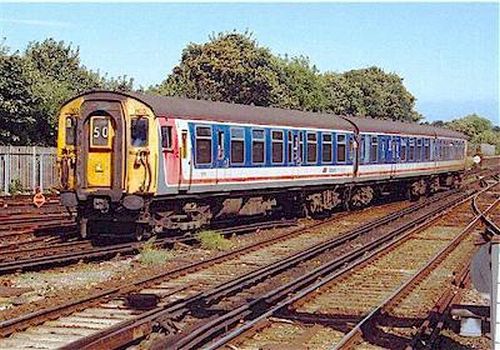

    Connex South East class 411/9 (3-Cep) unit N°1103 (note the unit number does not fit the sub class number format) still in Network SouthEast colours arrives at Ramsgate with a train from Victoria via Chatham and Margate on 21st September 2000.
    Photograph by Michael Taylor.
  • 1592
    Ramsgate
    Shiny green-painted unit N°1592 standing at Victoria having arrived from Ramsgate.
    Photograph by James Kent.
  • 1578
    Victoria
    During 2004 South Eastern Trains took over a batch of Ceps from South West Trains. Here unit N°1578 is seen at Victoria in modified SWT livery which, as can be seen, consists of removing the orange stripe!
    Photograph by Stewart Watt.
  • 1550
    Victoria

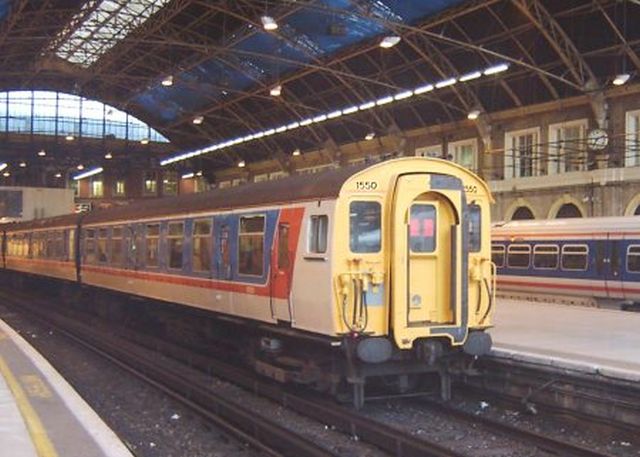

    Unit N° 1550 was pictured at Victoria in March 2004 as it waited to form the Ashford stopping service.
    Photograph by Paul Ferbrache.
  • "Cep Salute"
    Railtour
    Green liveried unit N°1592 at Victoria prior to leaving on the first leg of the "Cep Salute" railtour.
    Photograph by Paul Ferbrache.
  • "Cep Salute"
    Railtour

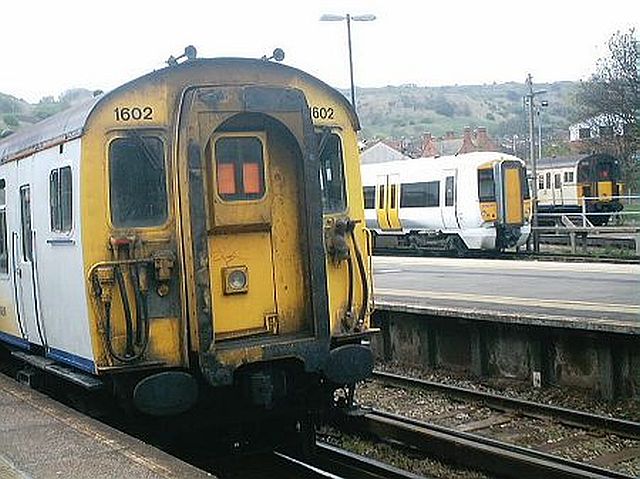

    The other unit that made up the tour train, N°1602, stands at Dover with one of the Electrostar units that are replacing the Ceps just across the tracks.
    Photograph by .
  • "Cep Salute"
    Railtour
    N°1602 is the lead unit standing at Gillingham before returning to Dover.
    Photograph by Paul Ferbrache.
  • Dartmoor Rly
    Okehampton
    One Cep vehicle that is in service after withdrawal from the main line is one of the driving cars from unit N°1589, now in use between Okehampton and Meldon Quarry on the Dartmoor Railway.
    Photograph by Paul Ferbrache.
  • -

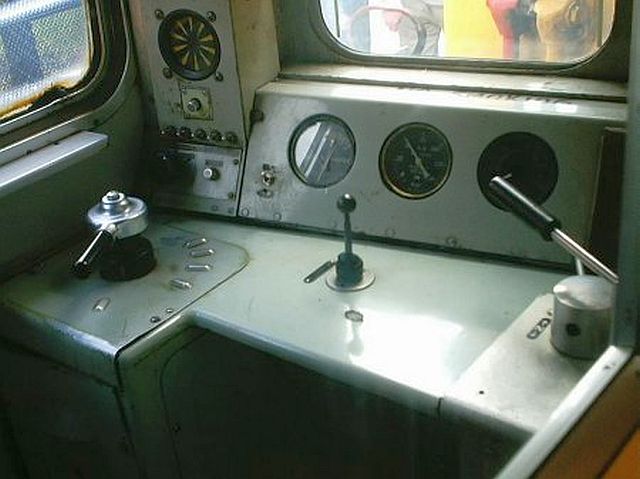

    The driver's controls in the cab of unit N°1602.
    Photograph by Paul Ferbrache.
  • Power
    Bogie
    A power bogie on Bep 2305. This is not the original power bogie and has clearly been the subject of an exchange for a later Mk6 type. Pictured at Bournemouth 28th April 2001.
    Photograph by Colin Duff.
  • Trailer
    Bogie

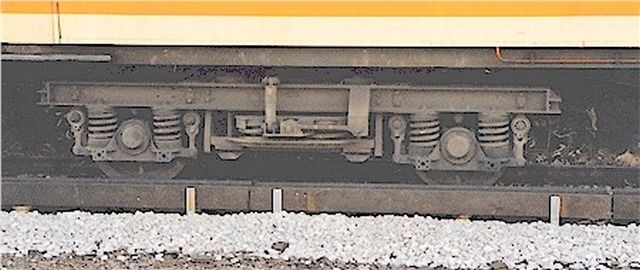

    A B5 trailer bogie on Bep N°2305 at Bournemouth.
    Photograph by Colin Duff.
  • Power car
    Underframe
    One side of a Cep/Bep power car underframe as seen on MSO 61804 whilst being shunted at Clapham Junction on 4th October 2002.
    Photograph by Colin Duff.
  • Power car
    Underframe

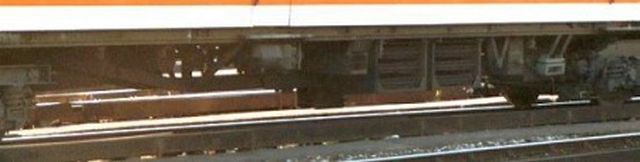

    The other side of a Cep/Bep power car underframe as seen on the other MSO of unit N°2311 vehicle 61805.
    Photograph by Colin Duf.
